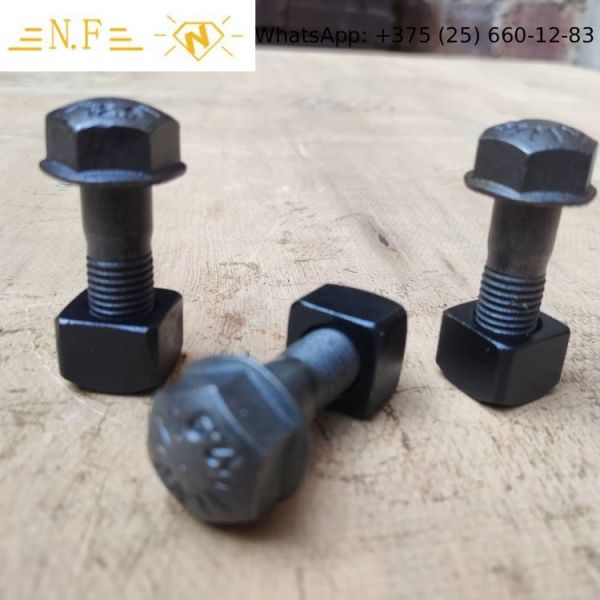

High Strength 10.9 Black Oxide Excavator Track Bolt 14x45 Oval Head Square Neck Special Hexagon Fasteners

Product Categories
Quanzhou Nanfeng Machinery Manufacturing Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

High Strength 10.9 Black Oxide Excavator Track Bolt 14x45 Oval Head Square Neck Special Hexagon Fasteners

  • 1
  • 2

Brand Name : NF

Model Number : 14x40

Certification : CE, ISO9001: 2000

Place of Origin : Fujian China

MOQ : 300 Piece (MOQ)

Payment Terms : T/T,L/C

Supply Ability : 3000000 pieces per month

Delivery Time : 5-10 Days

Packaging Details : Bulk in carton, small box, According to customer

Condition : New

Application : Screw Fastening System for Excavator, etc

Specification : 1/2"~1-1/2"

Trademark : Customer's Demand

Contact Now

High Strength Grade 12.9 Garde 10.9 Black Oxide 14x45 Oval Head Square Neck Fish Track Bolt Special hexagon Fasteners

In troduction of Bolt-on rubber tracks

For grousers that have pre-drilled holes by the original manufacturer. Does not add width to the shoe thus keeping the machine the same width. It's available for all brands of construction equipment and designed to fit grousers from 230mm (9") wide up to 800mm (32").

Features

  • Easy to fit and install in minutes!
  • Superior rubber compounds for long lasting durability
  • Attach directly to your existing grousers - or remove them and bolt to your drive chain!
  • Easy replacement of single units if one becomes damaged
  • Many types and sizes available to fit almost every machine on the market
Class of bolt, nut and washer



Components Bolt Nut Washer
Class 8.8 DH 10S F436M
8.8 2HM F436M

High Strength 10.9 Black Oxide Excavator Track Bolt 14x45 Oval Head Square Neck Special Hexagon Fasteners



Other size
Bolt-on
Type Pitch h D d Bolt L W H Weight
230BA 90 15 150 0 M12 230 60 31 0.800
230B 101 16 150 0 M12 230 70 39 0.900
250B 101 16 200 0 M12 250 70 39 0.925
300B 101 16 200 0 M12 300 70 39 1.100
300BA 101 16 200 0 M12 300 70 39 1.100
350B 101 16 200 0 M12 350 70 39 1.230
350BA 101 16 250 0 M12 350 70 39 1.230
350BD 135 14 250 46 M12 350 106 40 2.035
350BL 135 14 290 46 M12 350 106 40 1.900
350BR 135 14 290 46 M12 350 106 40 1.900
380B 135 14 300 46 M12 380 106 40 2.330
400B 135 14 300 46 M12 400 106 40 2.180
400BLR 135 14 300 46 M12 400 106 40 2.190
400BW 140 18 300 52 M14 400 123 65 4.000
400BH 140 18 350 52 M14 400 123 45 3.000
450BE 135 14 350 46 M12 450 106 40 2.450
450B 154 20 350 58 M14 450 124 49 3.500
450BLR 154 20 350 58 M14 450 124 49 3.500
500B 171 20 400 60 M16 500 137 57 4.580
500BA 175 26 400 57 M16 500 126 59 4.510
600B 190 26 400 69 M20 600 136 71 7.500
260BM   18 190 53 M12 260 120 50
260B   18 200 54 M14 260 112 48
260BK   18 200 57 M14 260 120 48
300BM   18 227 57 M12 300 120 50
300BK   18 220 57 M14 300 130 55
350BK 155 25 270 60 M14 350 135 60 4.000
400BK   25 300 60 M14 400 135 60
450BK   31 350 80 M14 450 170 76
200T   0 160 0 M14 200 90 30
305BP   0 177.8 0 M16 305 114 32
355BP   0 237.5 0 5/8" 355 132 32
455BP   0 305 0 3/4" 455 132 32
300-2 155 18 220 0 M14 300 135 50 2.400
300-4 155 18 220 45 M12 300 135 50 2.400
320-2 155 18 220 0 M14 320 135 50 2.700
320-4 155 18 220 45 M12 320 135 50 2.700

Chain-on
Type Pitch D d S Bolt L W H Weight
300C 135 144 116 22 M12 300 95 45
400C 135 94 64 46 M12 400 125 52
400CA 135 99 72 43.5 M12 400 125 52
400CK 135 100 73 43.5 M12 400 125 52
400CB 135 104 80 46 M12 400 125 52
400CD 135 110 80 46 M12 400 125 52
400CV 135 106 76 46 M12 400 125 52
400CK 140 80 80 52 M12 400 125 52
400CW 140 86 86 52 M12 400 125 52
450CN 140 83 83 52 M12 450 125 52 6kg
450CW 140 86 86 52 M12 450 125 52
450CA 135 99 72 43.5 M12 450 125 52
450CB 154 90 90 46.3 M14 450 146 55
450CD 154 90 90 55 M14 450 146 55
450CS 154 73 73 57 M14 450 146 55
450C 154 89 73 57 M14 450 146 55 8kg
500CW 135 104 80 46 M12 500 125 52
500CB 175 102.4 86.4 57 M16 500 162 69
500C 171  108 108 60.4 M16 500 162 69 12.3kg
500CS 171 104 88 58 M16 500 162 69
500CA 190 160.4 124.4 62 M20 500 178 72
500CD 190 155.6 119.6 69 M20 500 178 72
600C 171 108 108 60.4 M16 600 162 69
600CD 190 155.6  119.6  69 M20 600 178 72
600CA 190 160.4 124.4 62 M20 600 178 72
600CB 190 160.4 124.4 62 M18 600 178 72
300 155 88.9 88.9 57.1 M12 300 186 55 6kg
320 155 104 88.9 55 M12 320 186 55
3. Clip-on
Type Pitch h L W H Weight
380HD 135 18 380 104 55 3.215
400HD 135 18 400 106 51 3.055
450HD 135 18 450 106 51 3.395
450HW 154 20 450 124 50
450HB 175 26 450 127 68 5.600
500HD 175 26 500 127 68 6.230
500HW 171 20 500 137 68
500HB 175 18 500 127 60 6.206
600HD 175 26 600 127 68 7.220
600HB 190 26 600 137 71 8.220
600HA 216 30 600 160 76 8.980
700HW 171 20 700 137 63 8.200
700HD 175 26 700 127 68 8.275
750HA 216 30 750 160 76
800HD 190 26 800 137 70 9.505
Frequently Asked Questions
How many days for delivery?
Standard delivery takes 10-20 days depending on quantity. Urgent orders can be accommodated upon request.
Are you a manufacturer or trading company?
We are a manufacturer with over 20 years of production experience. Our trading subsidiary handles international operations.
Can I get samples?
Yes, samples are available with prepayment of sample and freight costs, refundable upon order placement.
How is quality guaranteed?
All products undergo strict testing procedures and must pass 100% quality inspection before shipment.
What after-sales services do you provide?
  • 24/7 customer support response (including holidays)
  • Technical support available anytime
  • Free replacements for confirmed quality issues
What payment methods do you accept?
We accept T/T, D/A, D/P, L/C, O/A and other preferred payment methods before shipment.
